Profile Plus™ 150 BC

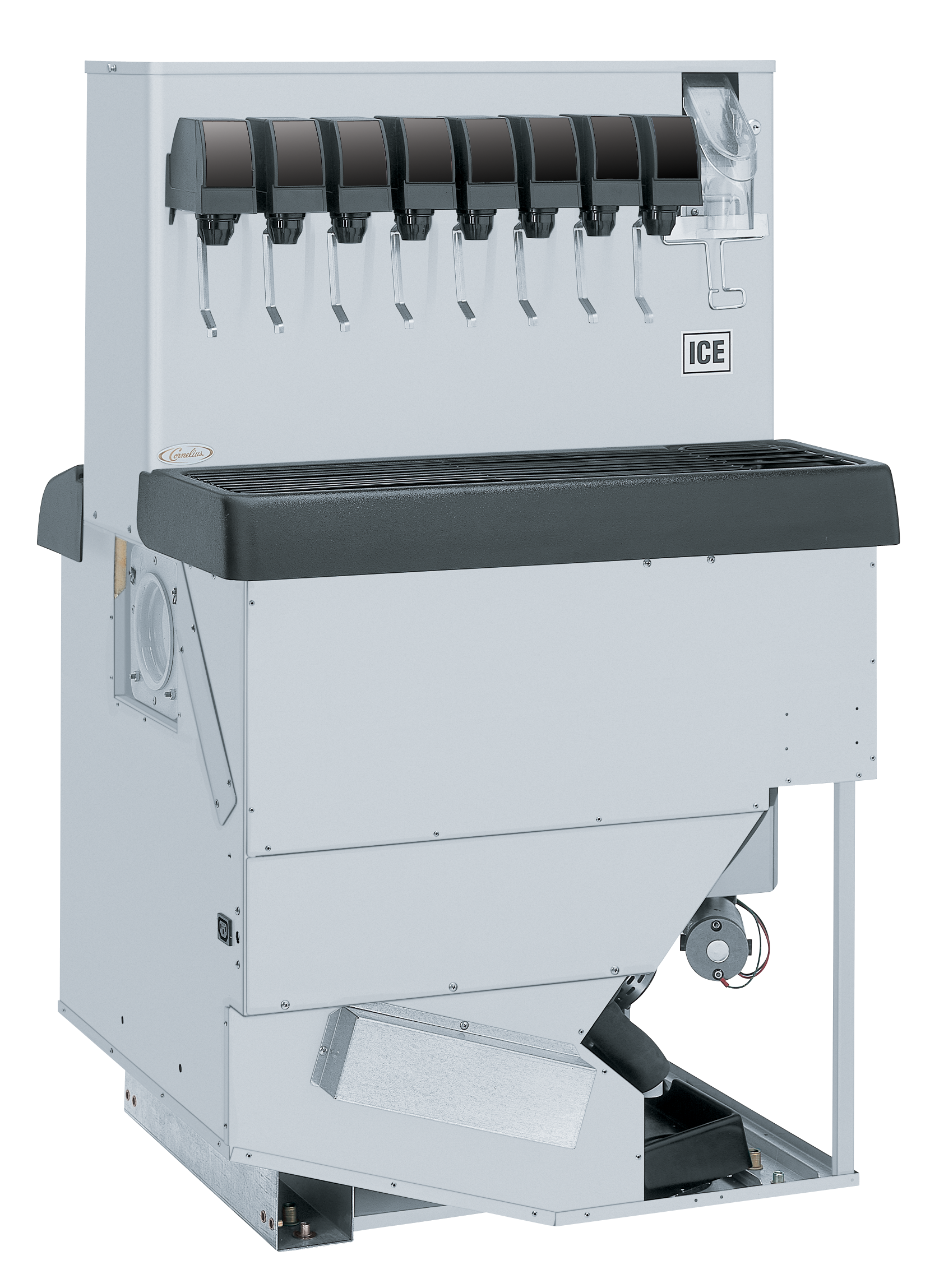

PR150BC Plus With 8 UFB-1™ Sanitary Lever Valves Left Side Ice Dispenser

Large Ice Capacity - 150 lb bin to meet peak demand
Valve Choices - Available with 8 UFB-1™ self serve lever or push button valves
Small Footprint - Countertop drop-in for minimum space consumption and maximum visibility
ABS Thermoformed Plastic Durabide™ Design - Provides durability and ensures all ice in the hopper is dispensable
Waist-Level Ice Fill - Convenient to manual fill from front or rear with right or left hand dispense option
Patented Coldplate Design - Optimal Beverage Cooling
Ice Dispense Rate - Adjustable ice dispense rate from 2-5 fl.oz. /sec
Front and Rear Access - Easy to clean and service
Improved Mounting of Motor - Eliminates premature seal wear and leaking
Separate Upper Drip Tray Drain Line - Prevents spills/overflow underneath unit and cabinet

download icon Operator Manual

[ENG]

	A New Fountain/Frozen Program	Replacing an existing Fountain/Frozen Program
Daily Drink Volume	$ROI calculate	$ROI calculate%
Average Drink Price	$ROI calculate	$ROI calculate %
Average Drink Cost	$ROI calculate	$ROI calculate%
Average Drink Profit	$ROI calculate	$ROI calculate%
Uplift %		$ROI calculate%
Incremental Daily Profit	$ROI calculate	$ROI calculate%
New Machine Price	$ROI calculate	$ROI calculate%
Old Machine Price		$ROI calculate%
ROI/Payback (Months)	$ROI calculate	$ROI calculate%

621054214

Product Categoryfountain
Agency ListingsUL, NSF, CE
Electricals Requirements116 V/ 60 Hz/ 3 Amps
Cup Clearance9.75 in (24.77 cm)
Number of Valves8
Ice Storage Capacity150 lb (68 kg)
Valve TypeUFB-1™ Sanitary Lever Valve
Unit Dimensions (Overall)31.875 in (80.96 cm) x 27.69 in (70.32 cm) x 50.25 in (127.63 cm) (W x D x H)
Shipping Weight350 lb (159 kg)
Cut Out (Inches)31 in (78.74 cm) W X 26.25 (66.675 cm) D
Beverage Manifolding3-1-1-3
Drink Performance and Cooling Capacity4-12 fl.oz. drinks per minute at 75 degrees will result in a drink below 40 degree
Drain Connection1- lower drip tray 3/4" OVC pipe/fittings 1-Upper drip tray 3/4" PVC pipe fittings
Standard FeaturesBeverage Key Switch,Automatic Timed Agitation
Net WeightEmpty 285 lb (129 kg) Full 435 lb (197 kg)
Height Above Counter21.31 in (54.13 cm)
Distance Below Counter32 in ( 81.28 cm)
Counter Max. Weight Support435 lb (197 kg)
